BL18 SENJU
The specifications of BL18 instrumentation "SENJU" are described
here.
Sample Environment (SE) at BL18
GM cryostat
Pulse tube cryostat
Room temperature goniometer
Room temperature 1-axis goniometer
Vertival Magnetic Field 7T Magnet
Niobium Furnace
now loading...

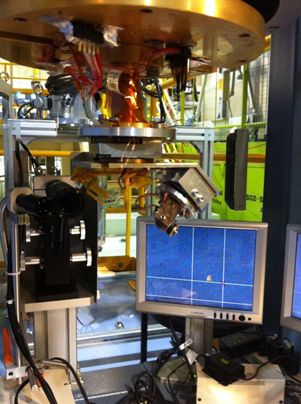

| Equipment | GM cryostat |  |
|---|
| Specification | Bottom-loading type
4-300K、2-axis Piezo-Motor(ω, φ) |
| Note | |
now loading...

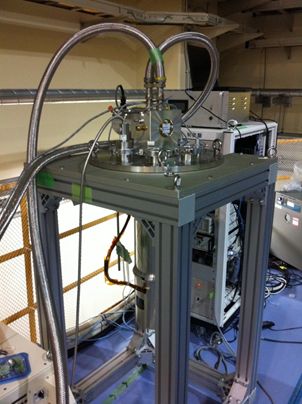

| Equipment | Pulse tube cryostat |  |
|---|
| Specification | Bottom-loading type
4-300K、2-axis Piezo-Motor(ω, φ) |
| Note | |
now loading...

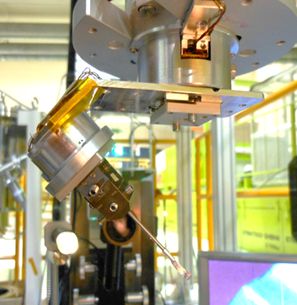

| Equipment | Room temperature goniometer |  |
|---|
| Specification | Room temperature、2-axis Piezo-Motor(ω, φ) |
| Note | |
now loading...

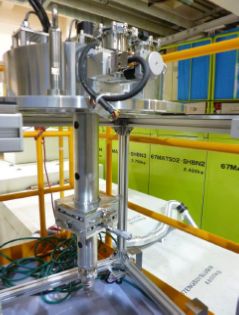

| Equipment | Room temperature 1-axis goniometer |  |
|---|
| Specification | Room temperature、1-axis stepping motor(ω) |
| Note | |
now loading...

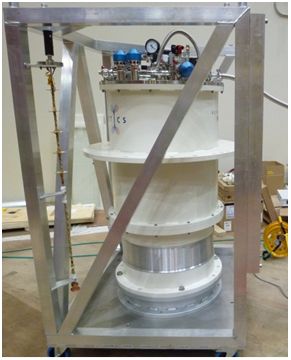

| Equipment | Vertical Magnetic Field 7T Magnet |  |
|---|
| Specification | Maximum magnetic field：7T
(However, at present, max 6.85T)
Bore diameter：50mm
Temperature range：3～300K（minimum：1.5K＠VTI、single shot：1.07K＠VTI）
Aperture angle：±10°（vertical）、330°（holizontal）
Attachment：
Vacuum chamber：JIS 800 Flange、
Gonio： 700Φ
Others：・Aluminum window
・ω rotaion（±180°）
・Replenishment of liquid He is every two days
・The operation of the equipment need about 2 days
Past performance：BL01、BL14、BL15、BL17、BL18 |
| Note | The maximum magnetic field is limited by the surrounding environment. For more information, please contact staff members of BL group you wish to use. |
now loading...
| Equipment | Niobium Furnace |  |
|---|
| Specification | Maximum temperature：1600℃（under vacuum）、1000℃（under He gas）
Maximum sample size：35mmΦ×100mmH
Attachment：
Vacuum chamber：JIS 400 Flange、
Gonio： 300Φ
Others：・Aluminum window
・ω rotaion（±180°）
Past performance：BL14、BL15
, BL18
|
| Note | |
