BL17 SHARAKU

The specifications of BL17 instrumentation "HARAKU" are described here.

now loading...

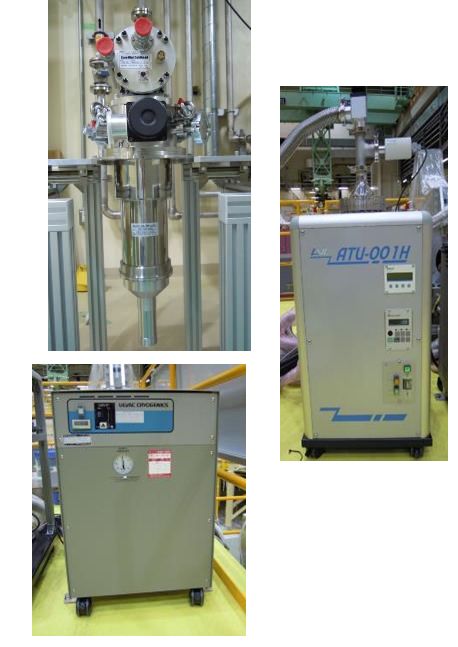

Equipment	4K Fridge
Specification	[Temperature Range] 3K - R.T. [Sample Size] about 15 x 15 mm² [Temperature Controller] Lakeshore 340 [Instruments tobe combined with] 1T Sample Magnet
Note

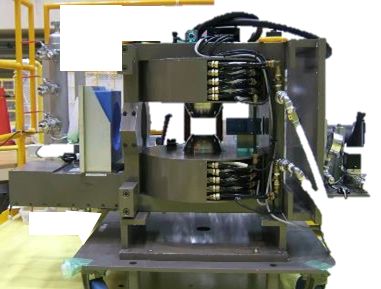

Equipment	1T Sample Magnet
Specification	[Specifications] 1. Field Direction: Vertical or Horizontal (*1) 2. Maximum Field Strength: +/-1.0 Tesla (Coil Current: +/-30A) [Instruments to be combined with] a. 4K Fridge b. Sample Stick (in ambient conditions) [Sample Size] a. about 15 x 15 mm2 (in the 4K fridge) b. about 30mm (field direction) x 50mm (on the sample stick) [X-stage] Control of horizontal position of a sample Translation range: 90 mm
Note	(*1) The instrument team does not recommend to change the field direction during your beam time since it needs crane oparations which is normally available only in daytimes on weekdays and it would take a few hours to change the field-direction.
