The specifications of BL15 instrumentation "Taikan" are described
here.
Sample Changer
3K Cryostat
4K Cryostat
Laser Heating Apparatus
0.2Tesla Electromagnet
1Tesla Electromagnet
4Tesla Superconducting Magnet
10Tesla Superconducting Magnet
Tensile Load Apparatus

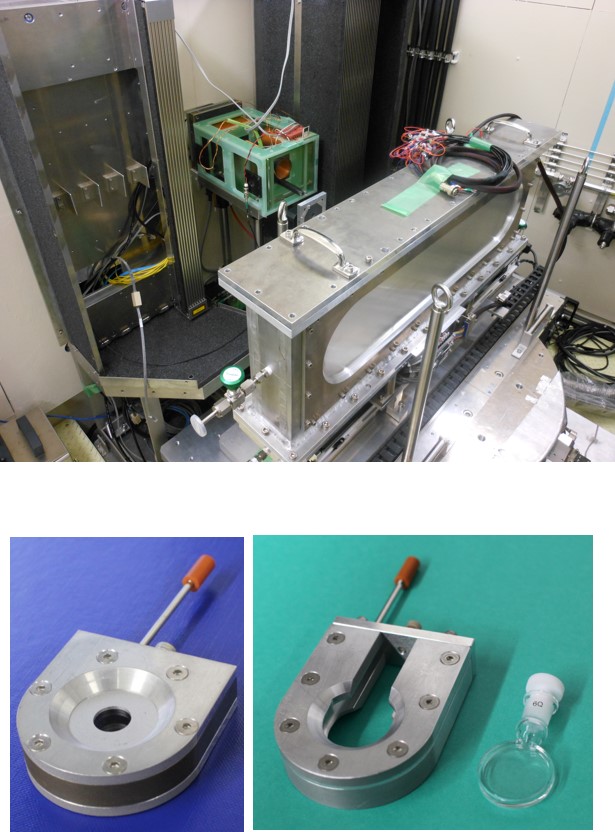

now loading... | Equipment | Sample Changer |  |
|---|---|---|
| Specification | 【Temperature】 0～70℃ 【Temperature Sensor】 ・Pt resistance thermometer …11 sensors 【Sample Size】 Approx. 15×15mm2 【Specification】 ・Maximum sample number …10 ・Temperature control by a water circulator | |
| Note |

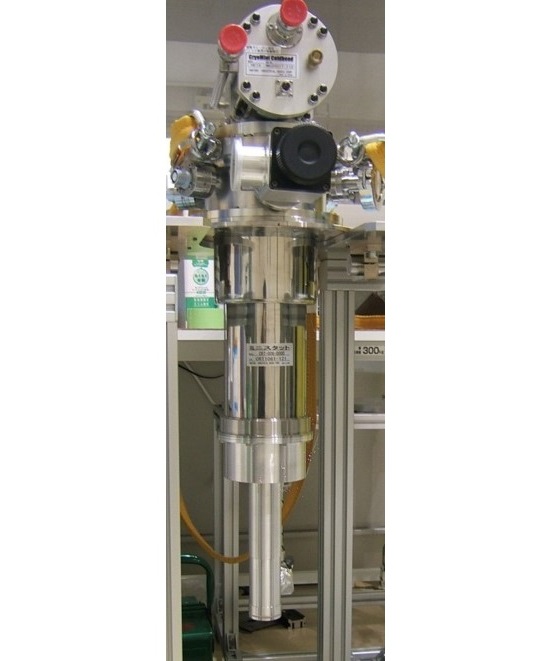

now loading... | Equipment | 3K Cryostat |  |
|---|---|---|
| Specification | 【Temperature】 3K～R.T. 【Temperature Sensor】 ・Cernox sensor …1 sensor 【Sample Size】 Approx. 15×15mm2 【Specification】 ・Bottom loading GM cryostat | |
| Note |
