BL11 PLANET

The specifications of BL11 instrumentation "PLANET" are described here.

Equipment	Temperature control system (Mito System)
Specification	・Opposed anvil device ・Description: Pressure is variable at low temperature. ・Pressure range: 0.1 GPa～5 GPa ・Sample size: 30 mm³ ・Temperature range: -190 ℃～200 ℃ ・Precision of temperature control: ±0.5 ℃ ・Cooling capacity: over 200 W
Note

Equipment	Paris-Edinburgh press（VX4)
Specification	・Opposed anvil device ・Working load: 200 tonf ・Description: Pressure is variable at ambient temperature. A reactive sample can be loaded in a globe box. ・Pressure range: 0.1 GPa～20 GPa ・Precision of pressure control: ±0.1 GPa ・Sample size: 88 mm³ (～10 GPa), 16 mm³ (>10 GPa)
Note

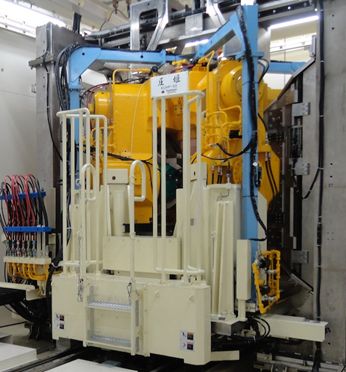

Equipment	Six-axis multi-anvil press
Specification	・Multi-anvil device ・Description: High-temperature condition is available at high-pressure. ・Pressure range: 0.1 GPa～10 GPa ・Precision of pressure control: ± 0.1 GPa ・Temperature range: Ambient temperature～2000 ℃ ・Precision of temperature control: ±5 ℃ ・Sample size: 50 mm³
Note

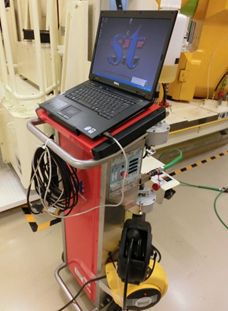

Equipment	Pressure control system
Specification	・Capacity：50 ml ・Working pressure：0～2000 bar ・Flow rate：0.1～10 ml/min ・Operation using a control panel
Note

Equipment	Pressure control system
Specification	・Capacity：16 ml ・Working pressure：0～3000 bar ・Flow rate：0.1～10 ml/min ・Operation using a control panel or PC software. ・Controled by constant flow mode or constant pressure mode
Note

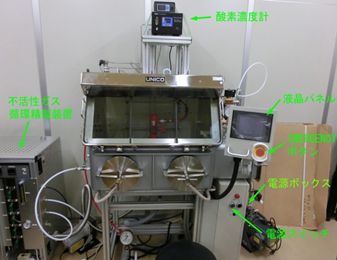

Equipment	Vacuum chamber globe box with pressure
Specification	Description of globe box ・Dimensions of main body: 800 W × 650 H × 600 D (mm) ・Dimensions of antechamber: 250 W × 250 H × 250 D (mm) ・Valves are automatically controlled during sample transferring and purge. Description of hydraulic press ・Working load: 10 ton ・Maximum stroke: 75 mm
Note

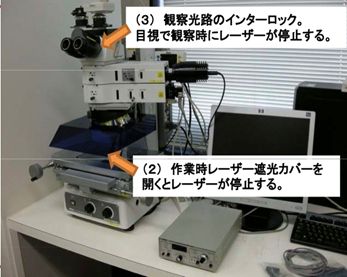

Equipment	Ruby fluorescence measurements system
Specification	Ruby fluorescence measurement system at off-line. System ・Measuring Microscopes: Nikon MM-400/U ・Spectrometer: Ocean Optics QE650000 ・Laser (typical): 655 nm, 120 mW / 635 nm, 10 mW / 405 nm, 20 mW
Note	Safety training for class 3B laser is required.

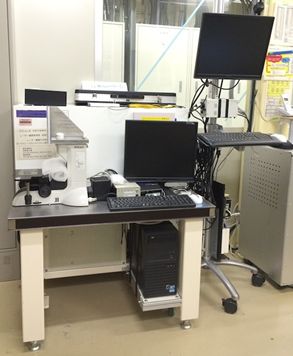

Equipment	Raman spectrometer
Specification	Raman spectroscopy and Ruby fluorescence measurement system at off-line and on-line. * Class 3B laser (Safety training is required). System ・Measuring Microscopes: Nikon MM-400/U ・Spectrometer: MCU-301 Sine bar ・Cooled CCD detector ・Dispersion: 1800 g/mm, 1200 g/mm, 600 g/mm f = 320 mm ・Laser: LD driven 532.07 nm, 100 m W ・Control the intensity of incoming beam with ND filter ・Software: AndorCommunication Assistance ・Fiber bundle probe / Optical microprobe (M Plan Apo SL20 (X20, WD 30.5mm)
Note	Safety training for class 3B laser is required.

Equipment	GM Refrigerator
Specification	Temp. range:6K-RT Cooling time：about 10 hrs Sample cell：standard powder sample cell
Note
